6ft WaterWheel

8ft Waterwheel

10ft Water Wheels

12ft Water Wheels
4 foot  WaterWheel          6 foot  WaterWheel         8 foot  WaterWheel         10ft WaterWheel           12ft WaterWheel
4ft.WaterWheel ( fully assembled)
*14 inches standard width.  ** Treated & Stained **
*Standard axle 1in. 2 ft long solid steel
*Standard bearings 1in. sealed pillow block
* 4 ft WaterWheel shipped fully assembled.

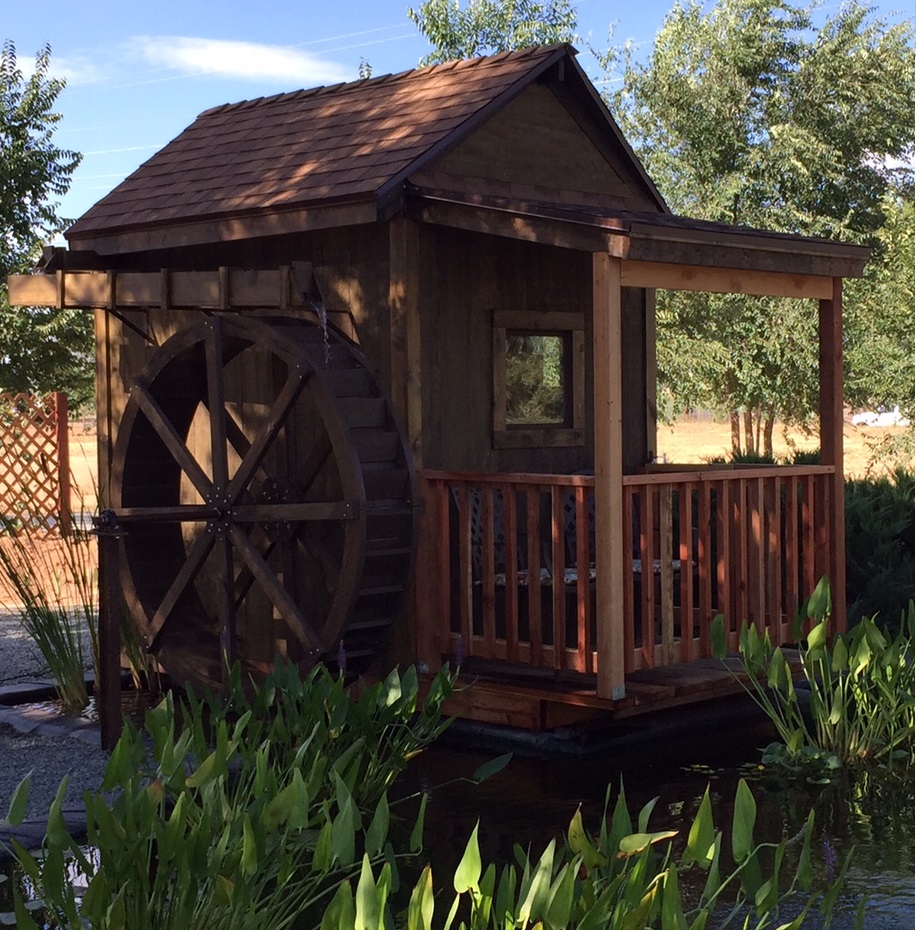

6 foot WaterWheel
** WaterWheel Treated & Stained **
* 17 inches standard width.
*Standard axle,1-1/2'' x 3ft long solid steel
*Standard,1-1/2 sealed pillow block bearings.
*6FT  Wheel shipped pre-assembled kit.
      To see Some of OUR KEY  Waterwheel ADVANTAGES  Click Here!
For Waterwheel Kit Assembly information     Click Here!
8ft. WaterWheel  (Our Best Seller)
* Standard width is 24"
& 2" thick rim and spokes
** Treated & Stained **
* Std. Axle is 2" x 4ft long solid steel. Longer is available
* std. Bearings are 2"sealed  pillow block
* hubs are diamond plated on back for grater hold
10ft. Waterwheel
* std width is 25" wide &   2" thick rim and spokes
** Treated & Stained  **
* std. Axle 2" x 4ft long solid steel
* std. Bearing is 2" pillow blocks
* hubs diamond plated on back  for grater hold
12ft. Waterwheel
*std. Width is 26" wide &  2" rim & spokes
** Treated & Stained **
*std. Axle 3" x 4ft long solid steel  ( Harden Axle shafting steel )
*std. Bearings 3" pillow block
* hubs diamond plated on back

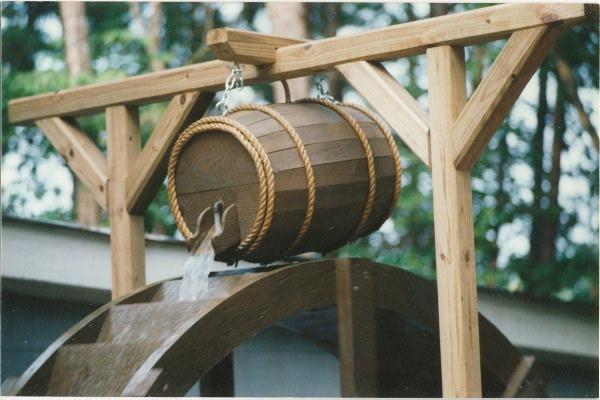

BARREL KIT( OFFERED AS A OPTION )     Comes with barrel, pipe, chains &
hooks. Barrel comes ready for pump hookup. Pipe & spout are already installed.The
pressure treated 4 x 4s are not included but are store bought length, so no cutting
should be needed. All measurements & details will be included with barrel kit.
Any of our Water Wheels can be picked up at our shop to save on shipping..
WaterWheel Plans  &  WaterWheel  Axel Assembly  Click Here
Installation is available
We offer installation on 8 foot & larger water wheels, if you prefer us to do it for you.
Built to Last      (Needs no maintenance or replacement parts!)
Our water wheels are built with rough sawn southern pine that we buy straight from the mill
and treat our selves with our special   treating process; it's environmentally safe, It contains
no arsenic, will not warp like pressure treated!  We use southern pine because its much
more stronger and  durable, the grains will not separate like cedar. Some of Our water
wheels have carried huge unbelievable amounts of ice and are still running strong with no
problems. With all our water wheels still running strong including our very first with no
problems in 12 yrs I see no reason that they won't last for many more years to come.
(864)468-5036
All water wheel designs, pictures and text are the Property of Sullivan's WaterWheels
All rights reserved, not to be reproduced  without expressed written consent !!!
All images, Material & Designs on this site is property of Sullivan's WaterWheels !!!!
Copyright © 2003-201
4 Jarrett Sullivan. All rights reserved.
Product Page
4ft waterwheel by Sullivan Waterwheels
12 foot waterwheel built by sullivan waterwheels
one  kit also includes bolts, nuts and washers and bearings
8 foot waterwheel for a grits mill in GA. Sullivan WaterWheels
Click Here for more info. on the 8 foot waterwheel
Our 6 Foot Waterwheel, 8 Foot  Waterwheel & 10 foot  Wheels can be purchase fully assembled
for  the same price listed below. However, customer  will have to pick up at our shop or be in
charge of arranging  shipment.

Click Here for more info. Prices and Ordering the 6 foot WaterWheel
Click Here for more info.Prices and Ordering  the 4 foot  waterwheel
Click Here for more info. on the 10 foot waterwheel
Click Here for more info. on the 12 foot waterwheel
4ft WaterWheel
12 foot WaterWheel In SC Built by Sullivan WaterWheels

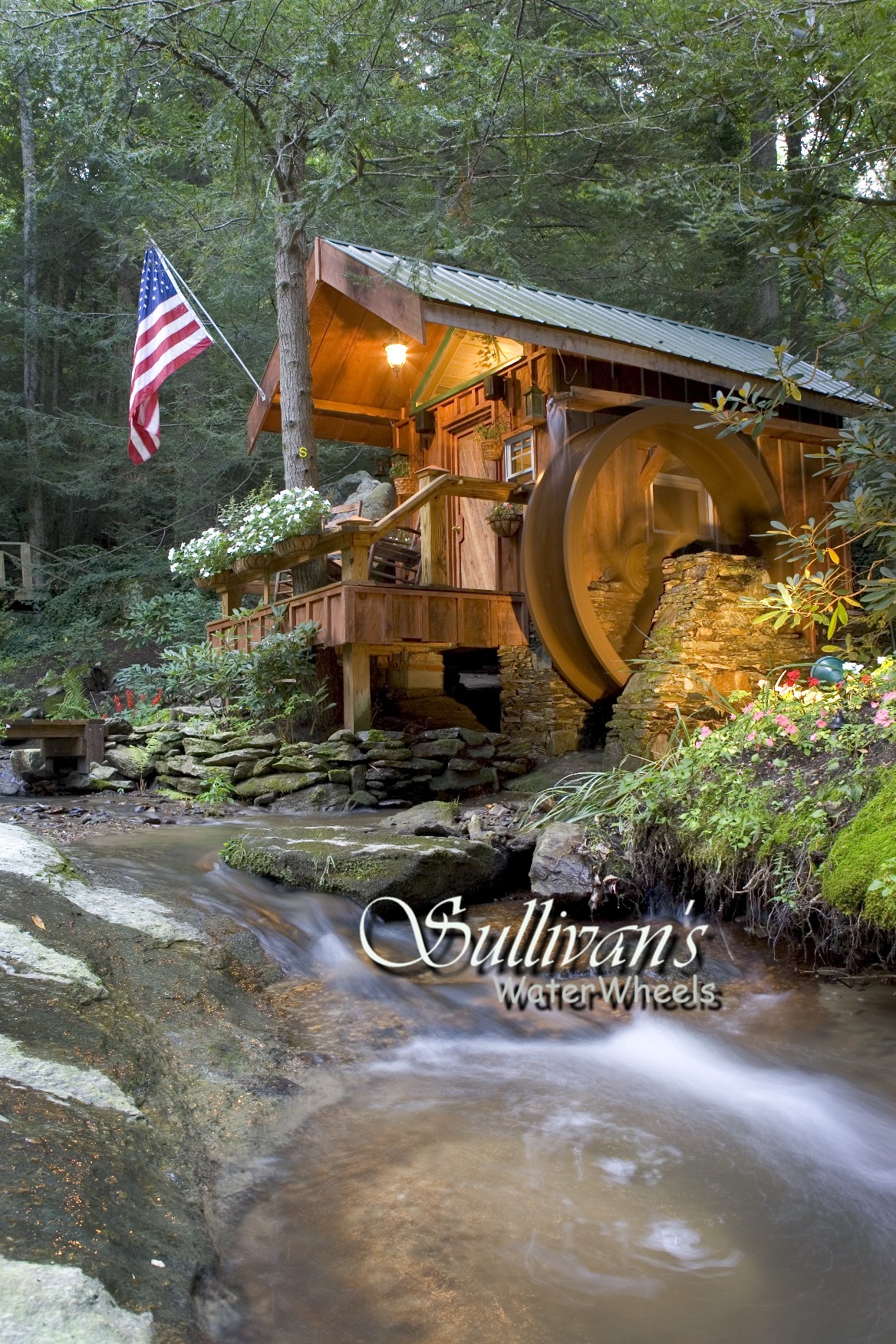

8 Foot WaterWheel in NC using sullivan waterwheel kits

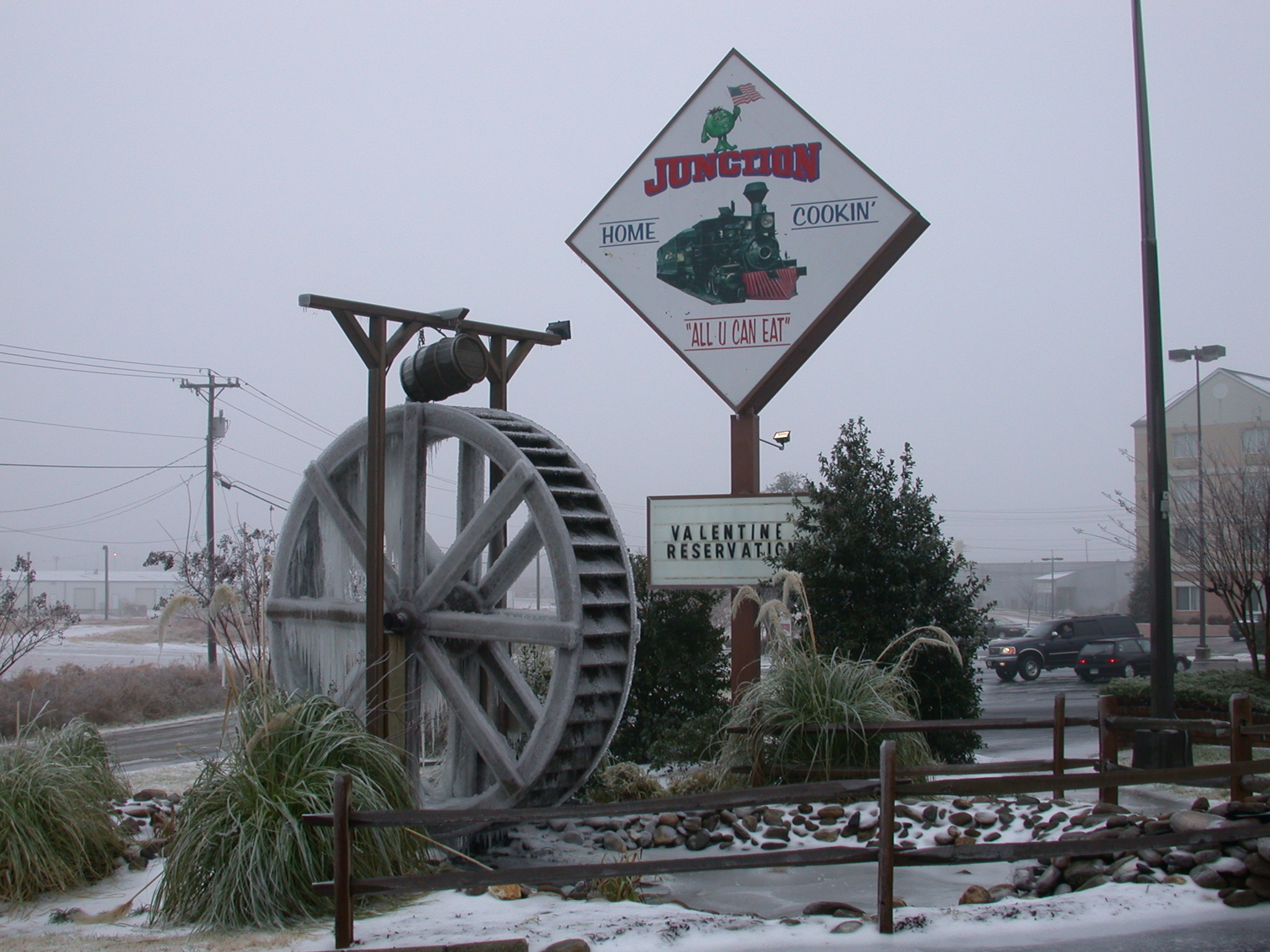

12 foot with ice in SC Built by Sullivan waterwheels
